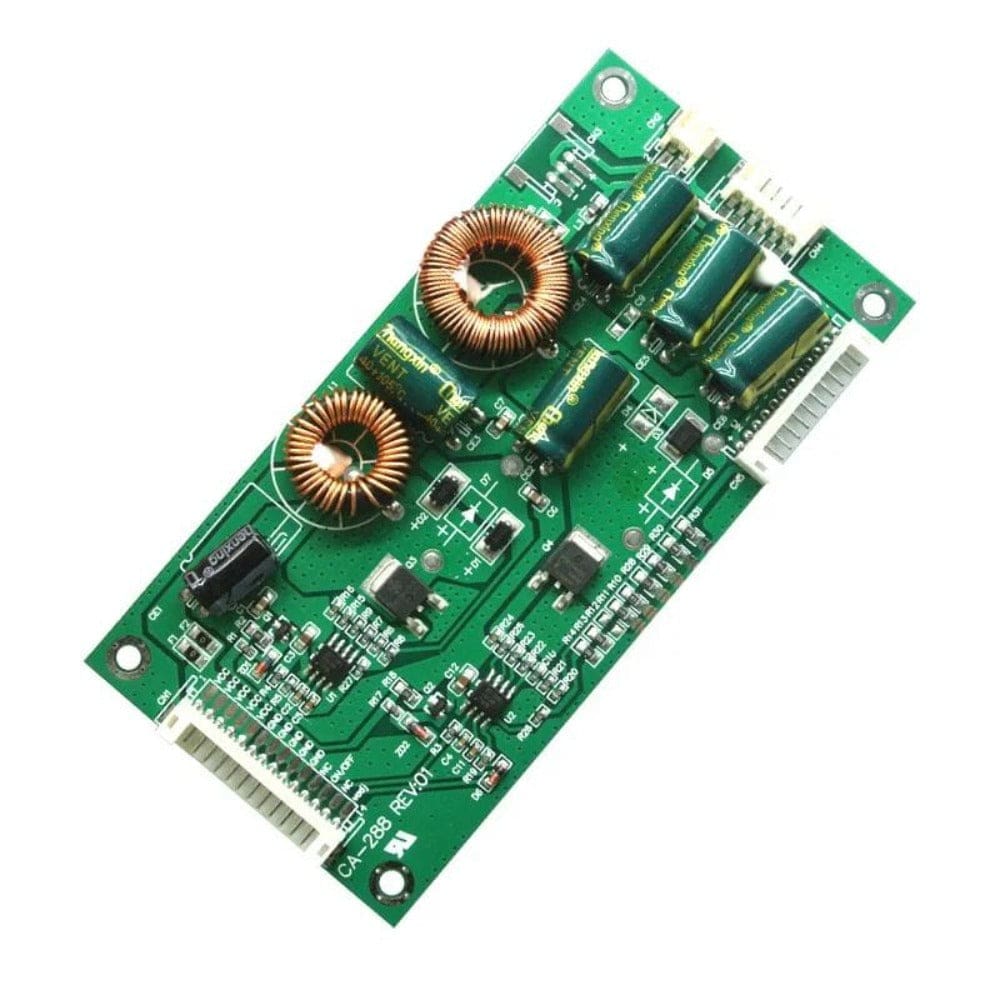

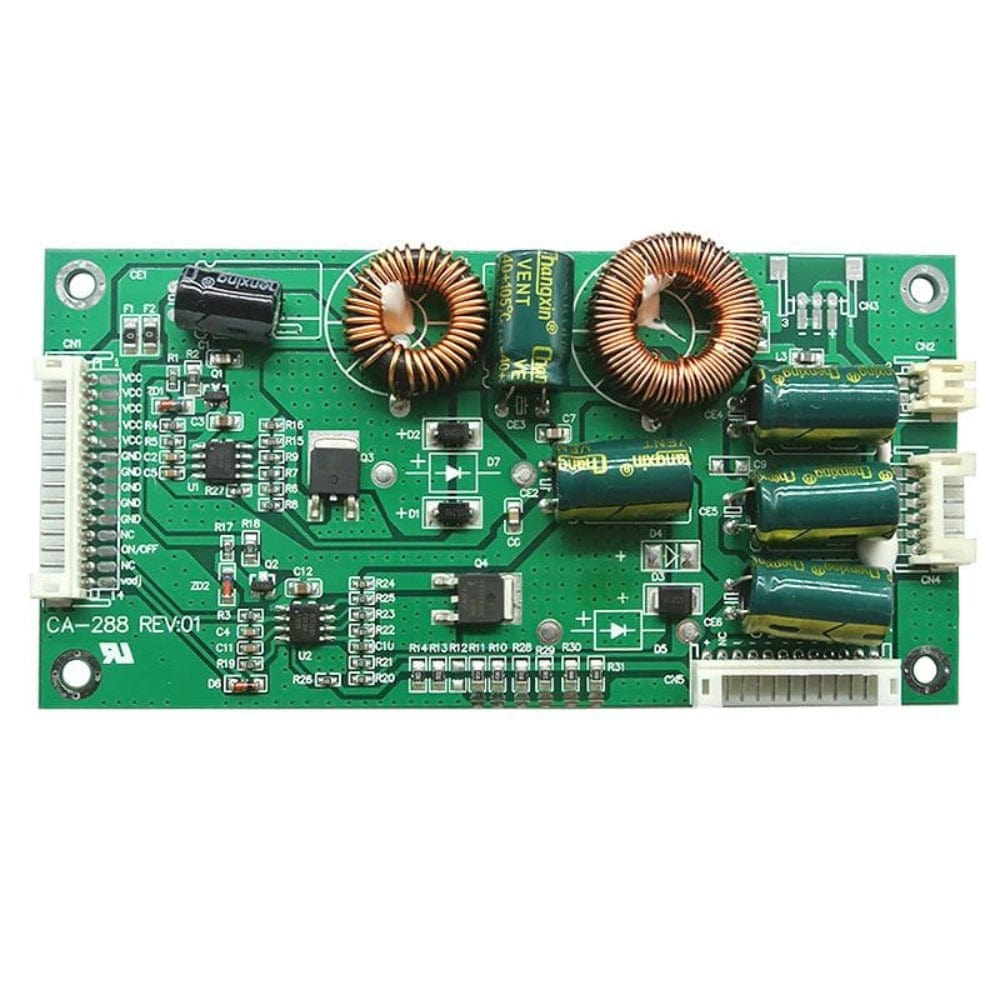

This double-coil universal LED LCD TV Backlight Driver Board is the perfect choice for power-demanding LCD TV projects. It offers two independent coils to meet the most challenging requirements and ensures a consistent backlight brightness. Enjoy a smooth visual experience with this reliable and powerful driver board.
Compatible Device
LED/LCD TV
Model Number
CA-288
Product Type
Circuit Boards
Applicable TV Size
26-55 inch LED/LCD TV Display
Input Voltage
19-45V DC
Output Voltage
60-165 volt automatic adaptation

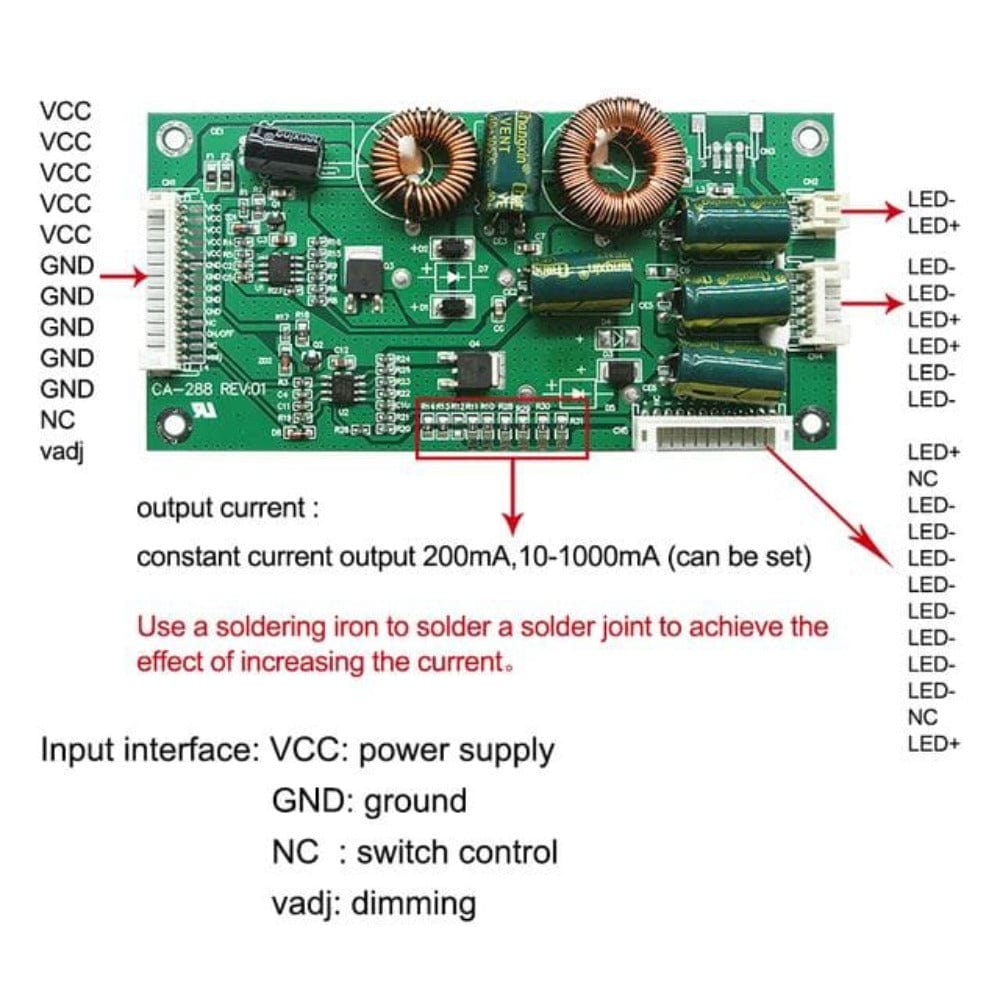

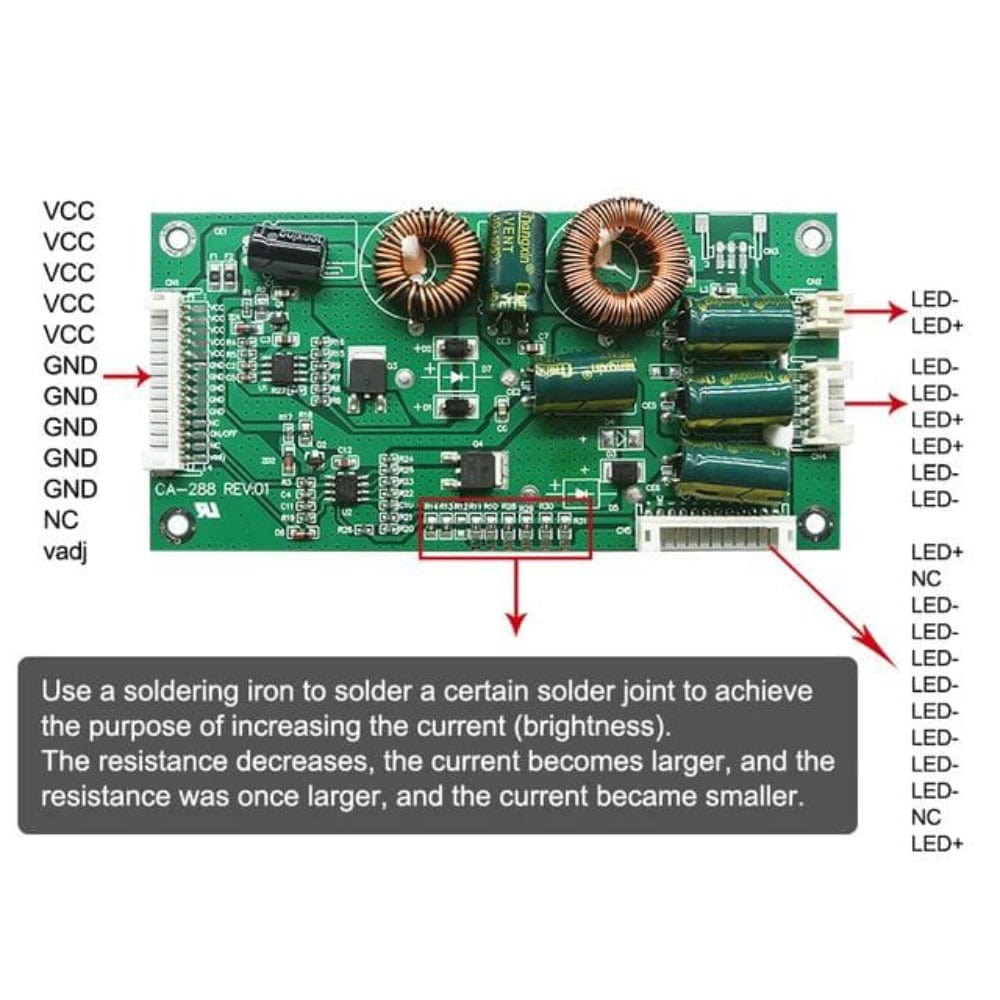

Output Current
200mA Constant current, Which can be adjusted as required
