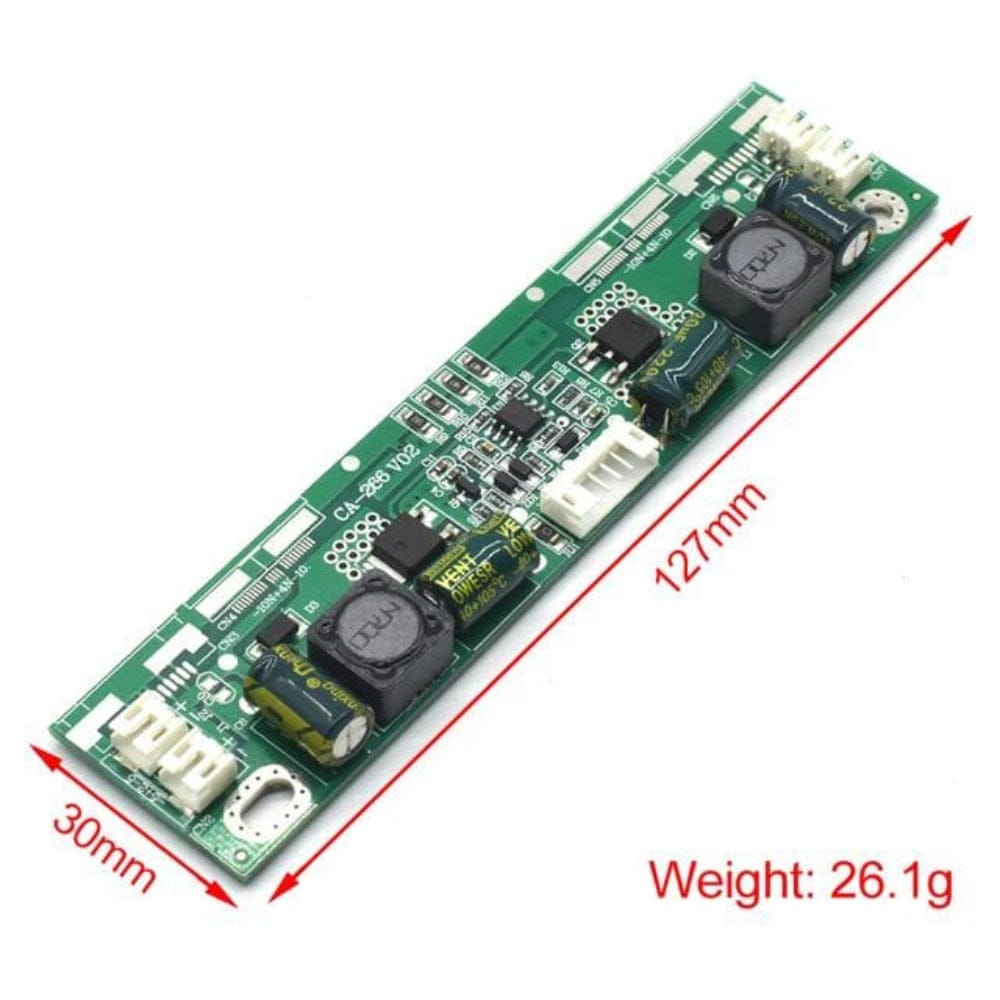

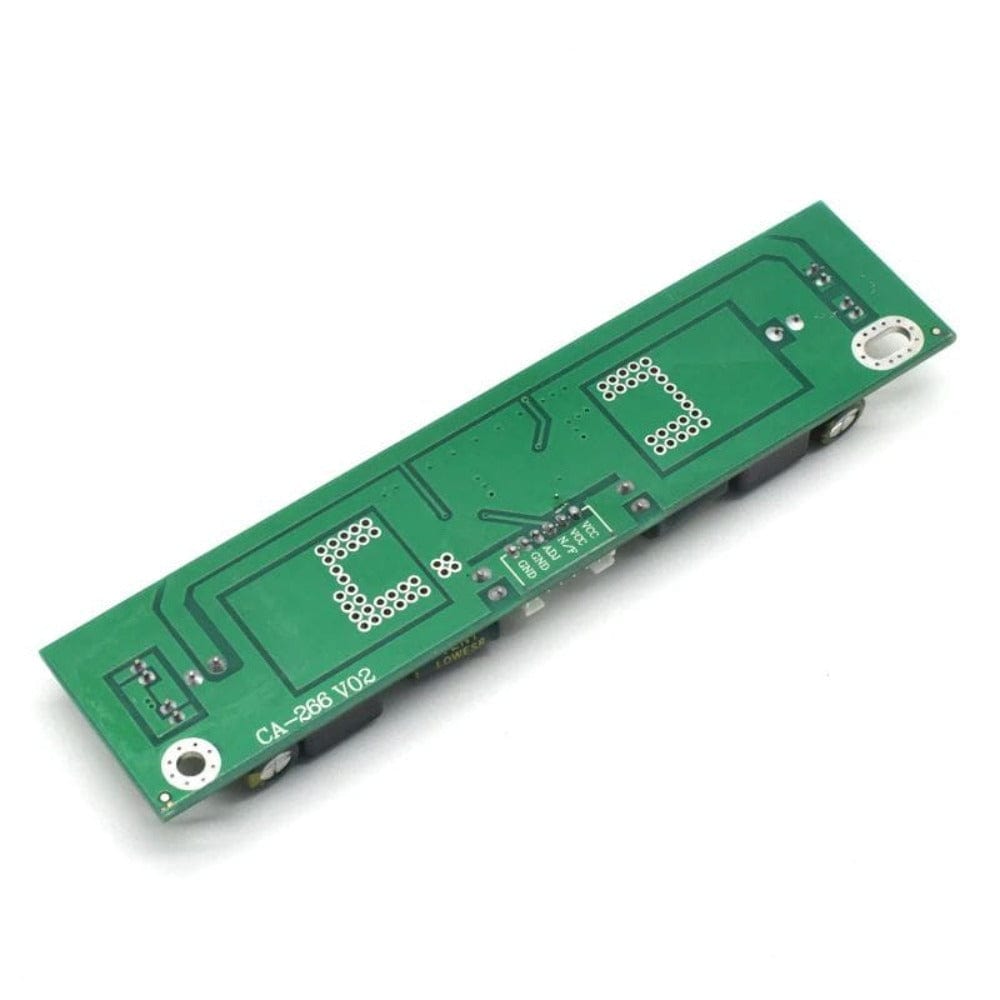

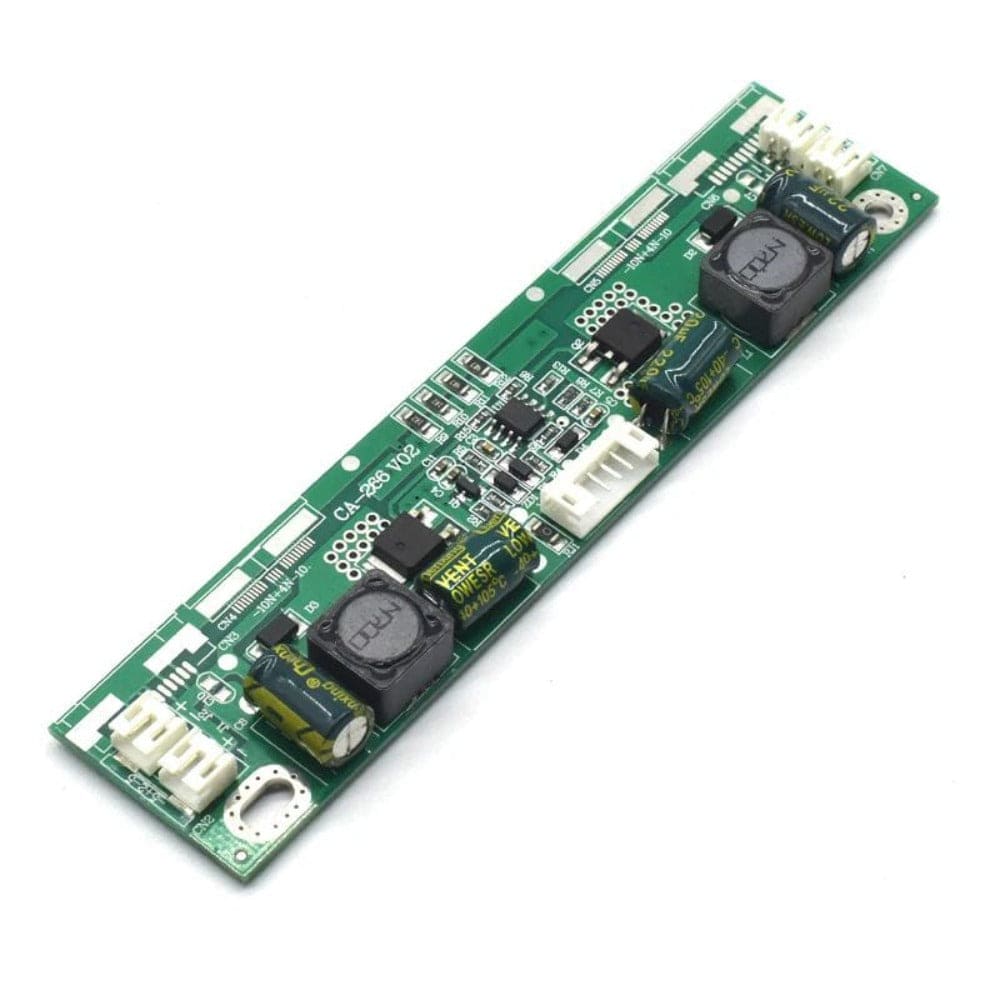

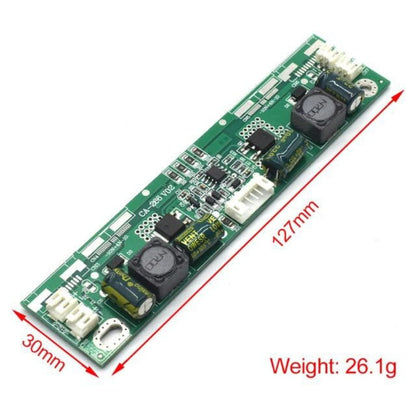

CA-266 Double Coil Universal Backlight Inverter Board 32-65 inch LED TV
CA-266 Double Coil Universal Backlight Inverter Board 32-65 inch LED TV
Regular price
Rs. 340.00
Regular price
Rs. 499.00
Sale price
Rs. 340.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
This Double Coil Universal Backlight Inverter Board is perfect for 32-65-inch LED TVs. It provides reliable performance and long-lasting operation. The board is designed with advanced technology to ensure optimal power efficiency and reduce power loss. The compact design makes it easy to install and perfect for any space.
| Compatible Device |
LED/LCD TV |
| Model Number | CA-266 |
| Product Type | Circuit Boards |
| Applicable TV Size |
32-65 inch LED/LCD TV Display |
| Input Voltage |
10-28V DC |
| Output Voltage |
18-88V |
| Output Current |
10-1000mA ( can be set） |
| Country of Origin | China |
1: with protection.
2: Output voltage below 88V automatically.
3: Changing the current is convenient, the motherboard has six 1206 resistances, a resistance of 80mA, and up to 6 resistance is fully connected to 480mA.
5: no load will not burn the board (in the case of no load or bad light output voltage will drop to the input voltage, or in the
case of load voltage higher than 88V will be reduced to the input voltage value).

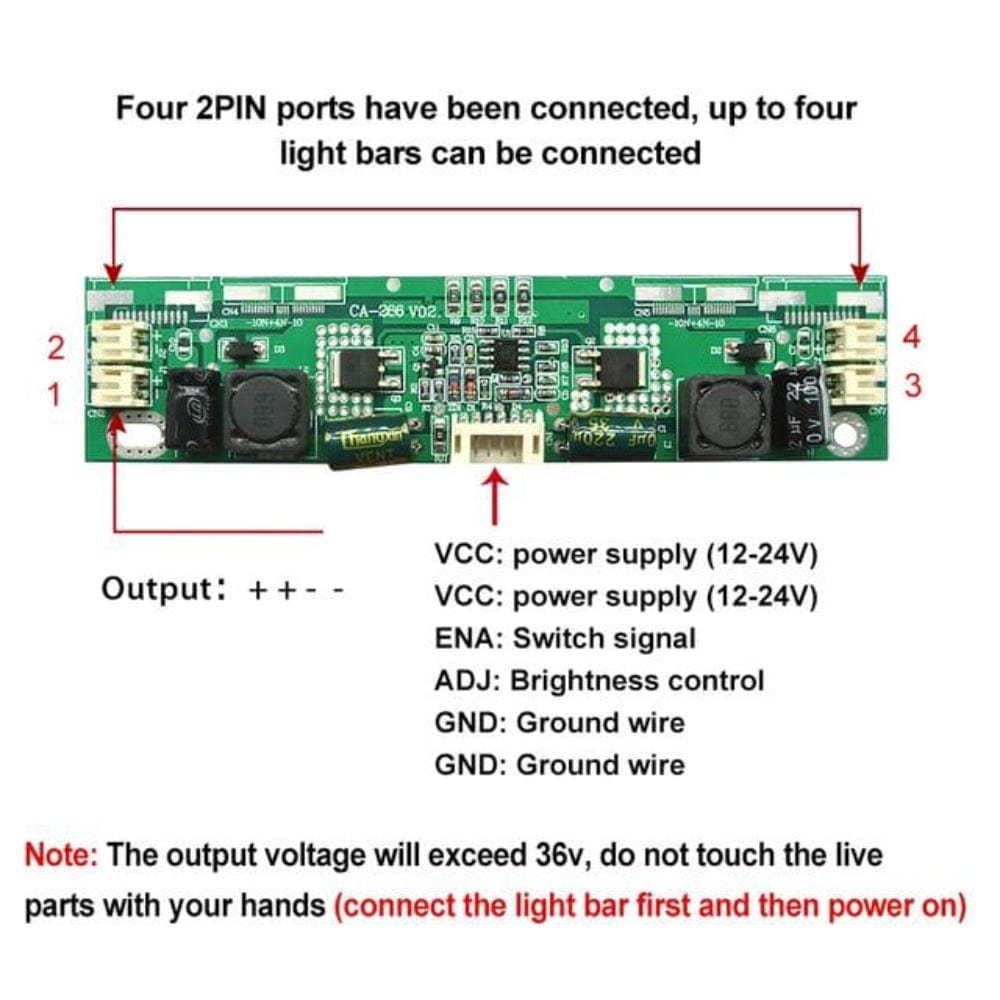

6: with 4 output interface, the general definition of ++ -, in the then 2pin left and right of the right light of the interface,
directly to the middle of the 2,3 pin can be, 1, 4 pin empty.
