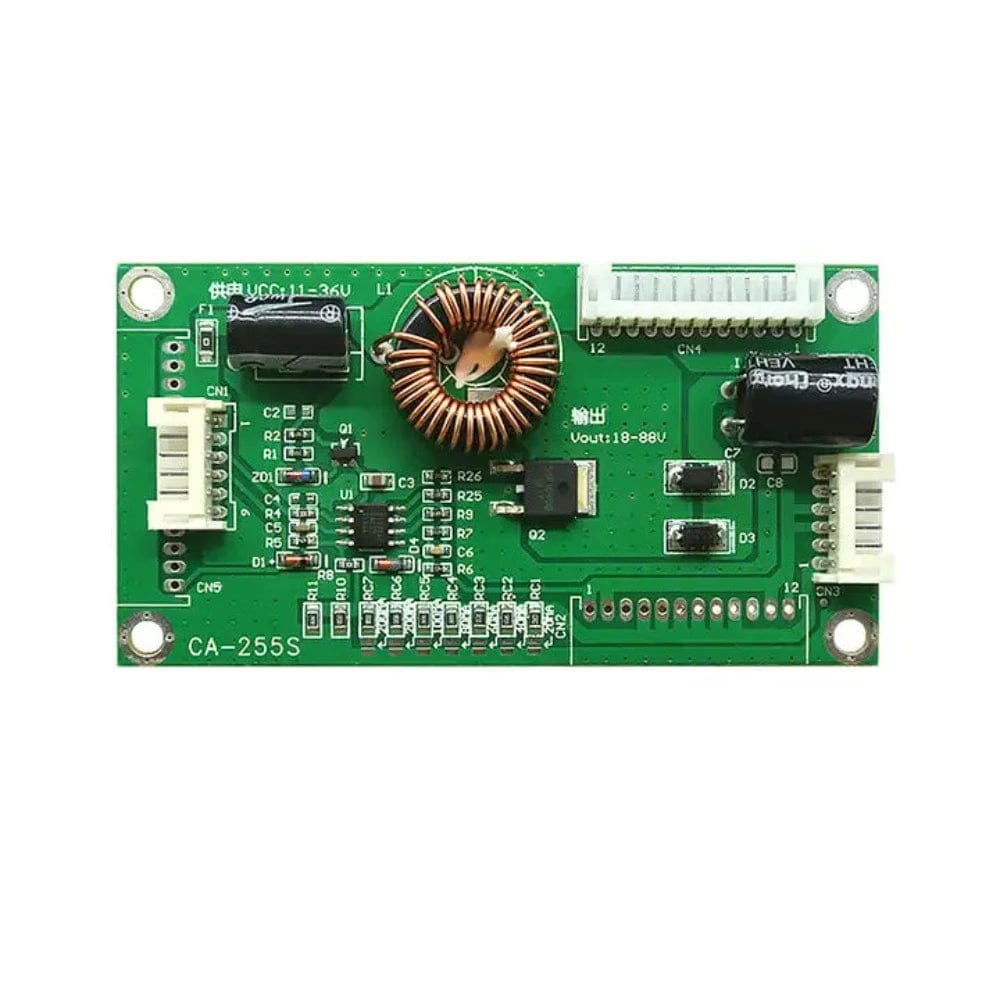

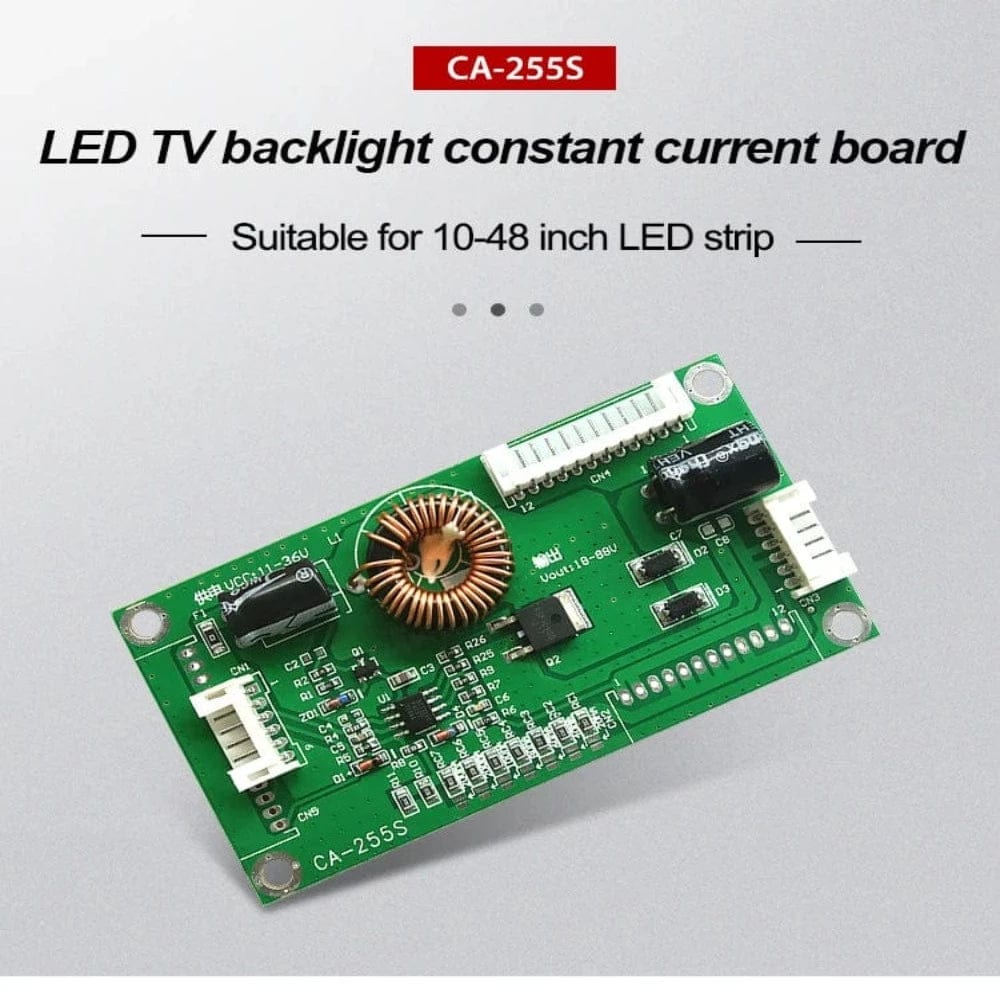

This single coil universal backlight inverter board is compatible with 10-48 inch LED TVs. With its efficient design, it ensures optimal backlighting for a more immersive viewing experience. Enhance the clarity and Enjoy a smooth visual experience with this reliable and powerful driver board.
Compatible Device
LED/LCD TV
Model Number
CA-255S
Product Type
Circuit Boards
Applicable TV Size
10-48 inch LED/LCD TV Display
Input Voltage
11-36V DC
Output Voltage
60-165 volt automatic adaptation

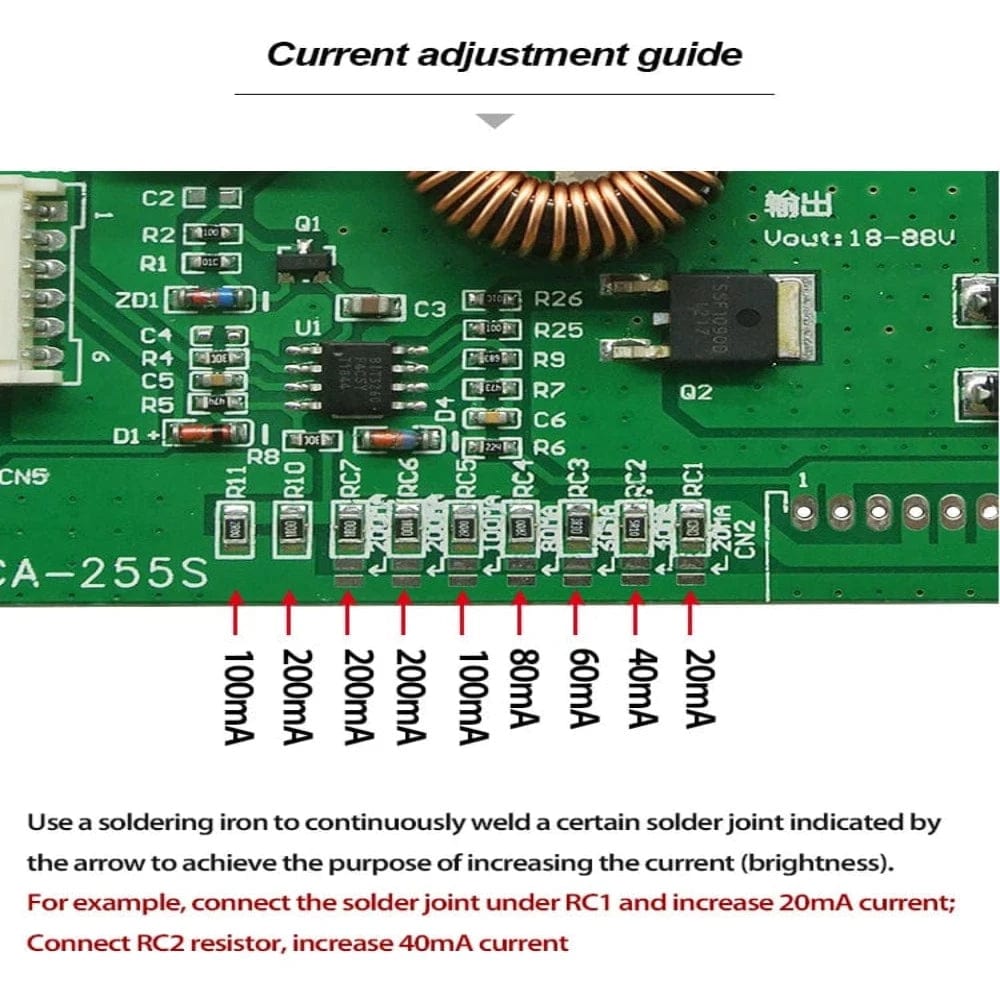

Output Current
Which can be adjusted as required 20-1000mA (can be set)
